The PerMix PTSH series Plow Mixer can be used for numerous processing, including compounding, fine mixing, dispersing, suspending, emulsifying, deaerating, tempering, accelerating chemical or physical reactions, granulating, breaking down agglomerates, etc. It is particularly suited for such difficult processes as mixing trace elements in proportions of 1 in 100,000 to 1 in 1,000,000 parts.

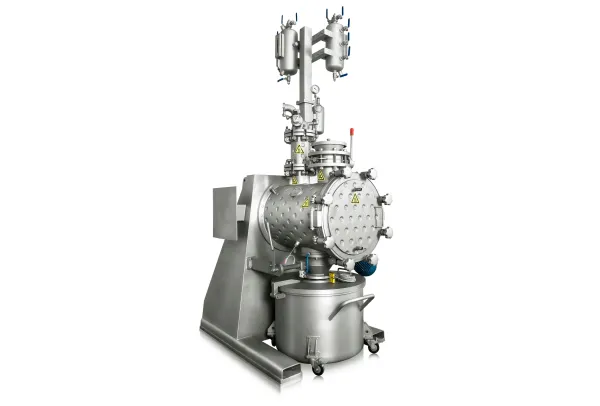

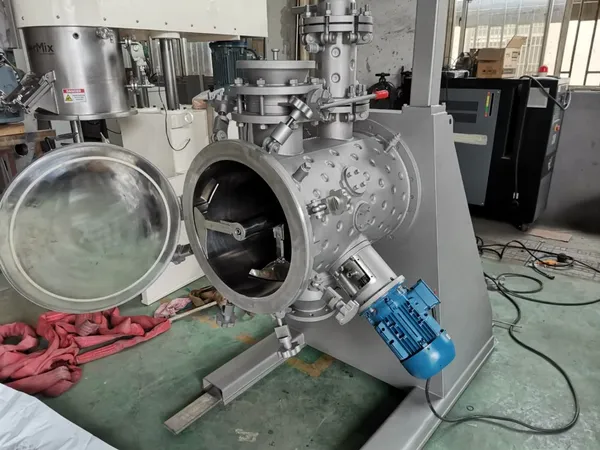

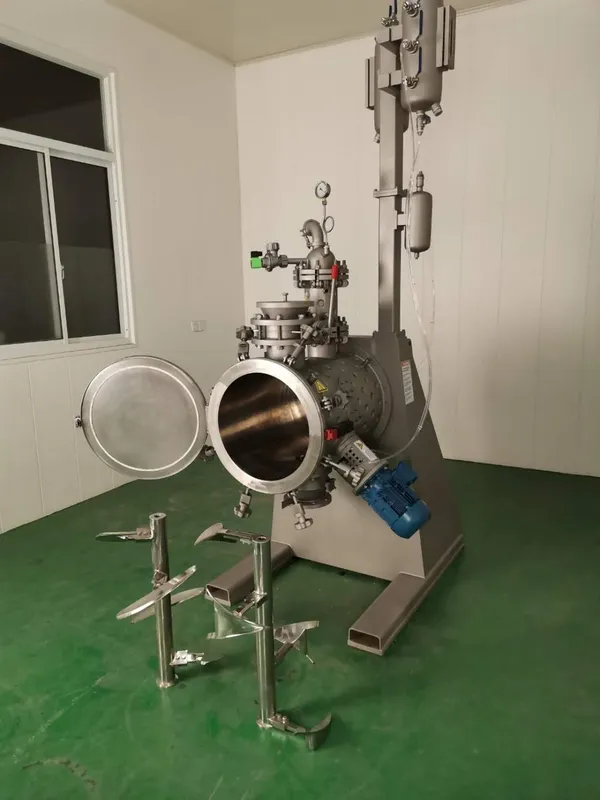

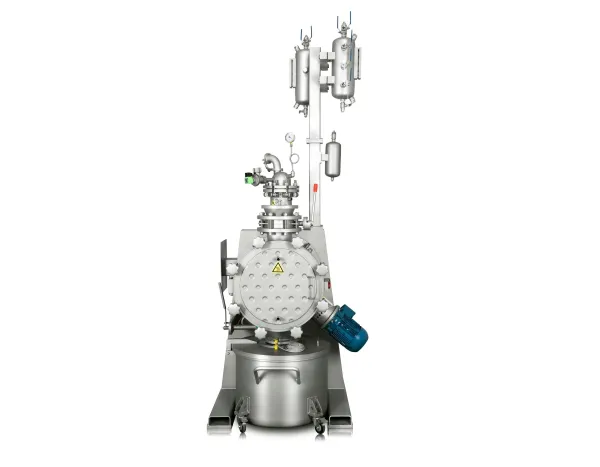

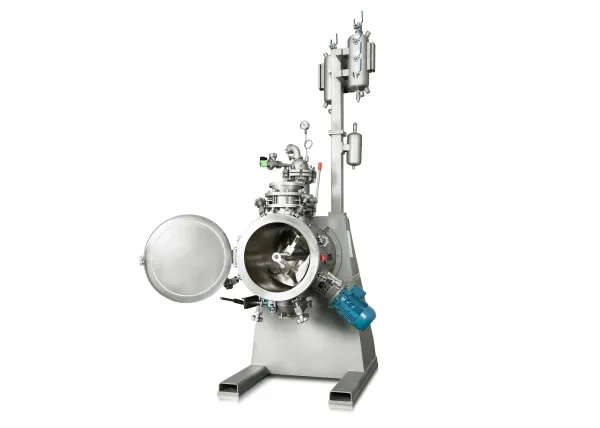

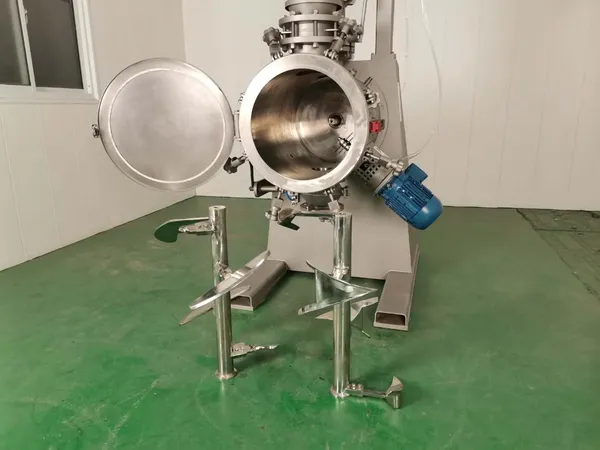

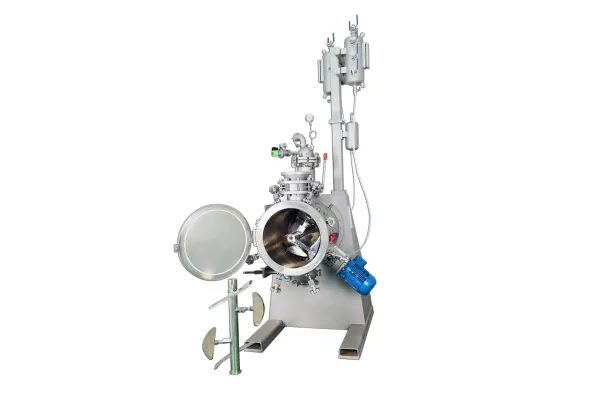

PerMix PTSH series Plow Mixers is a hybrid plow mixer that also acts as a ribbon mixer, paddle mixer, and plow mixer. Simply open the cantilever end and exchange agitation with the type needed.
PTSH plow mixers are so versatile that it can handle nearly all types of materials including drying material, powdery granular, short fibered substance, moist solids with liquids, pasty material and highly viscous masses.

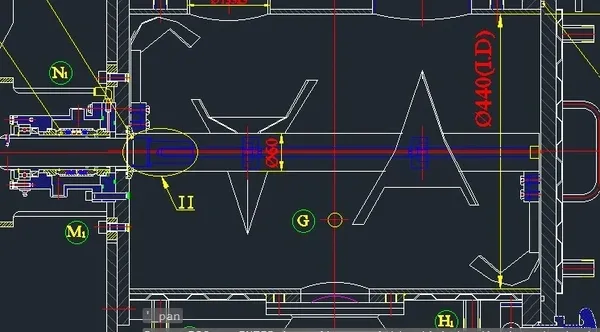

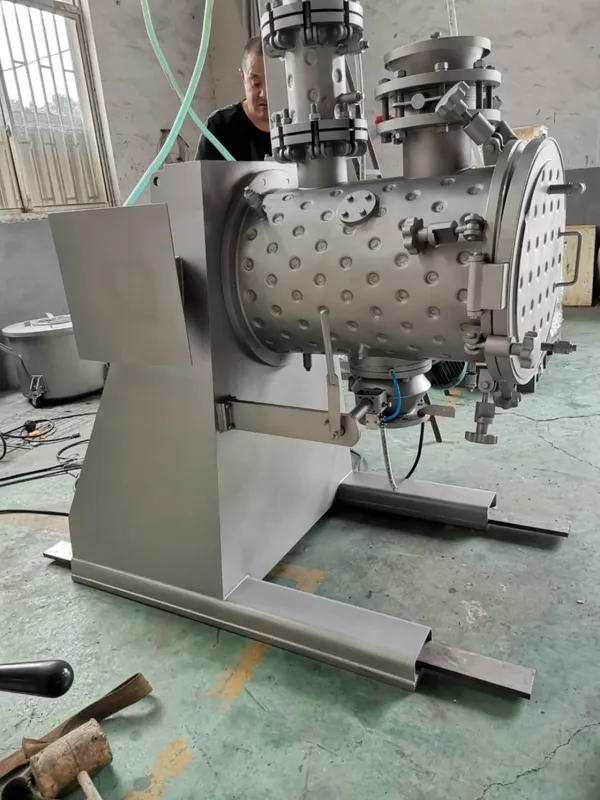

PerMix PTSH series Hybrid Plow Mixers consist of a centrally mounted horizontal shaft that rotates within a cylindrical container, plows or other shaped mixing elements are attached to the centrally mounted shaft, special openings at the top for feeding materials, flush fitting access doors at the front of the mixer, a flush fitting discharge valve at the bottom of the mixer which is pneumatically or manually operated, and a complete drive unit.

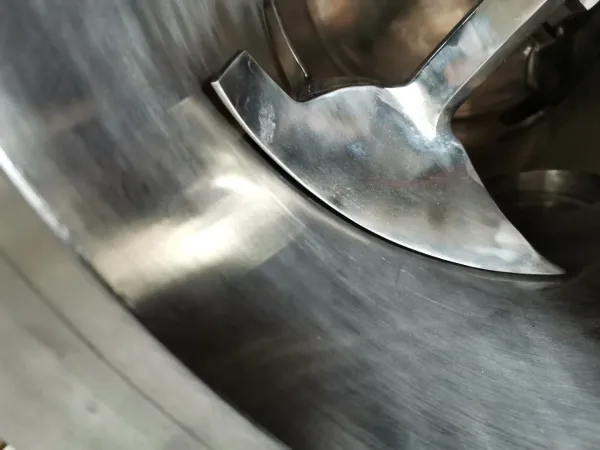

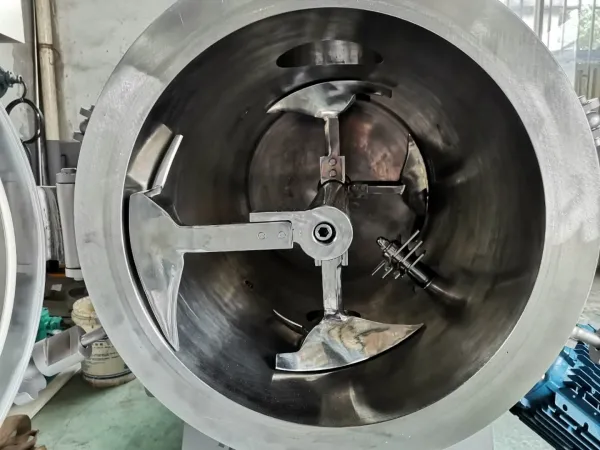

The plow mixers container is filled from 30% to 70% capacity, allowing space for individual particles to be dispersed within the main area of the mixer. The plow shaped mixing elements create intense axial and radial movement causing the product to move throughout the mixing space. The shape and angle, together with the adjustment and rotation of the mixing elements and drum wall, cause the product to be lifted off the surface of the drum wall. The product is automatically discharged while the machine is still running so that any separation is prevented.

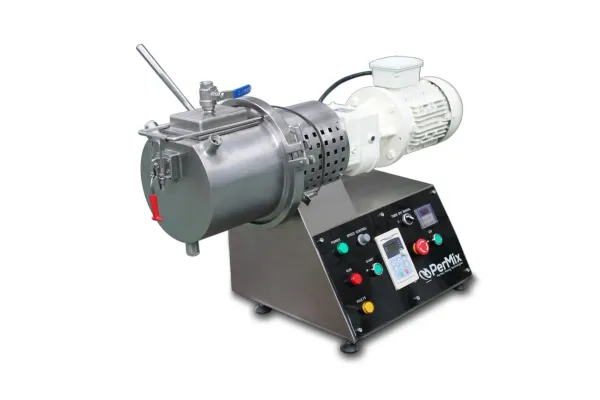

PerMix offers lab & pilot size plow mixers for Research & Development purpose. The small size machine is very helpful for customers when the ingredients for R&D are expensive, and to meet the budget limit at the first stage. With the good performance of the lab & pilot mixer, it is easy to scale up for a medium size or even bigger one.
The installation of PerMix Multi-chopper in the basic PTS mixer enables the breaking down of agglomerates during the mixing process. Together with the mixing element, the PerMix Multi-chopper removes lumps in the initial product, chops pasty adhesives and hinders the formation of agglomeration during the moisturizing of powdered substances. The PerMix Multi-chopper is operated independently by its own motor.
– Various Types of Mixing

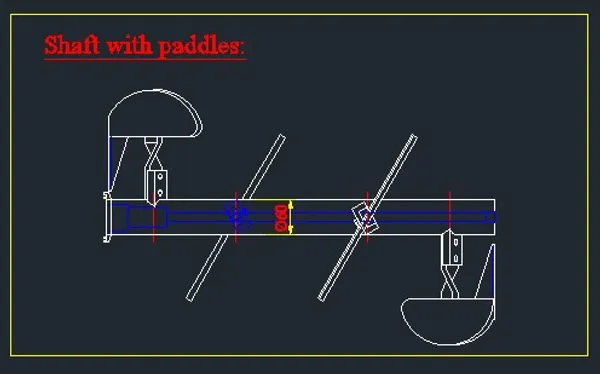

PerMix provides mainly two types of mixing elements – plough (for PTS Mixer) and paddle (for PTP Mixer). Both have their advantages: the plough shaped element can easily penetrate through the dense and thick powder or paste materials, while the paddle element can cover an even wider range of viscosity.
– Continuous Operation
We can supply machines for continuous work when a large capacity per hour is needed for the same material. Continuous plow mixers differ from batch plow mixers in that the mass flow of the product is from the inlet of the container to the discharge at the opposite end.
– Heating & Cooling Jacket
Jacketed trough for heating/cooling operation by steam, thermal oil, or water.
– Drive System
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
– Feeding & Discharging
A variety of feeding & discharging methods can be selected by the customers. Discharging port can be by manual or pneumatic operation.
– Access Door
Access doors can be designed for easy inspection & maintenance.
– Spray Nozzle
Liquid can be added into the powder by spray nozzles on a pipe which is installed on the top of the mixing trough. The necessary pump and tank can also be provided by us.
– Extended Height Bases
Height of our mixers can be defined according to customer’s condition.
– Construction Material
We are able to offer mixers with contact part to be built by Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. For abrasive materials we offer hardened steel as the contact part. Also we produce mixers all by stainless steel in order to meet the high hygienic requirement.
PerMix Jacketed Plow Mixer Dryers are available in size range from 1 to 30,000 liters.

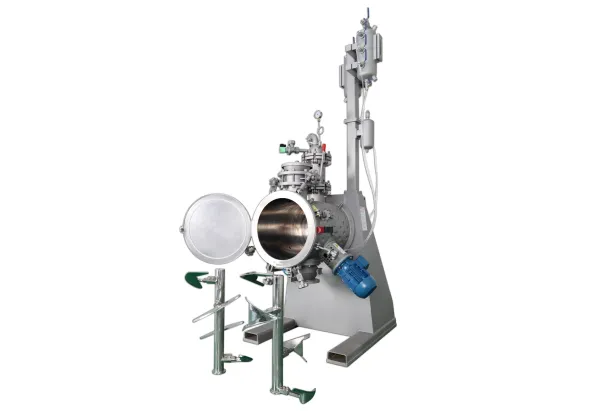

PerMix Hybrid Mixers allow users to change between plow mixer, paddle mixer, and segmented ribbon mixer.
